Why Slab Thickness Matters More Than Most People Realise
Getting the depth wrong is one of the costliest mistakes in any construction project. Too thin, and the slab cracks under load or shifts with ground movement. Too thick, and you’re pouring money into unnecessary concrete.
According to Standards Australia, residential slabs must comply with AS 2870, which governs residential slabs and footings based on site classification. A Class A site (stable, non-reactive soil) has very different requirements to a Class H2 site (highly reactive clay), which is common across parts of Queensland and New South Wales.
Here’s a quick breakdown of common slab types and their standard depths:
| Slab Use | Standard Thickness |
|---|---|
| Foot traffic only (pathways, patios) | 75–100 mm |
| Residential floor slab | 100 mm |
| Garage or driveway | 100–150 mm |
| Pool surrounds and equipment pads | 100–150 mm |
| Structural or commercial slabs | 150–300+ mm |
These figures are starting points. Your specific project may require engineering sign-off, particularly if you’re building on a sloped block or reactive soil.

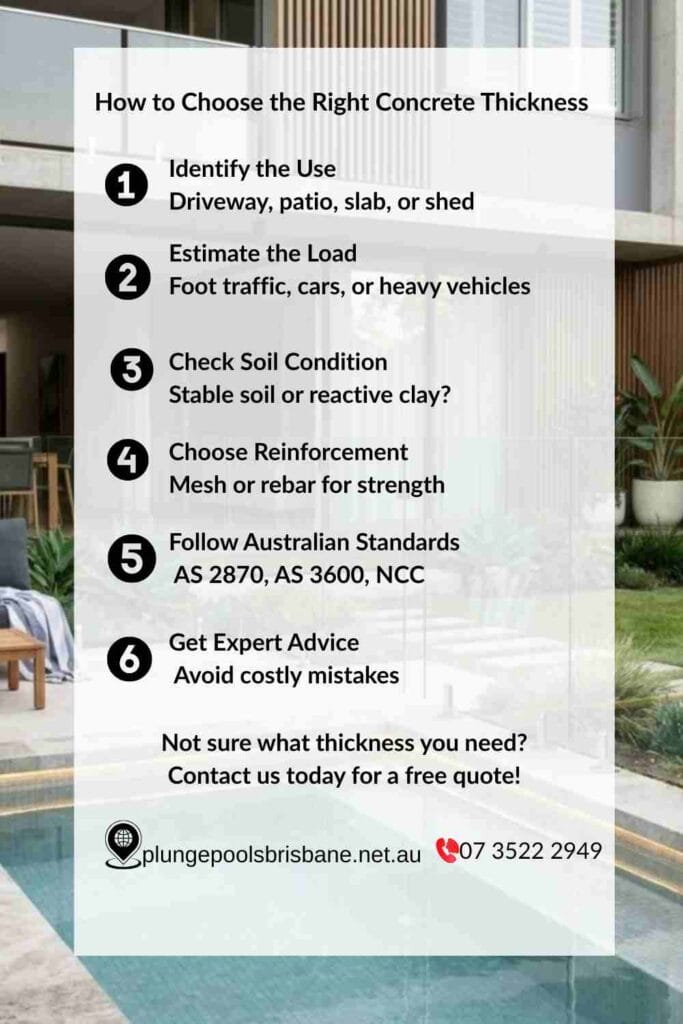

Key Factors That Determine Concrete Slab Thickness
Soil Type and Site Classification
Soil reactivity is one of the biggest variables in Australia. Reactive clay soils can shrink and swell with moisture changes, which puts constant stress on a slab. A geotechnical investigation can identify your site classification before work begins, saving you from expensive repairs later.
If you’re working with a sloped site, the complexity increases significantly.
Reinforcement and Load Requirements
Thicker concrete alone doesn’t guarantee strength. Steel reinforcement (reo bar or mesh) works alongside the slab depth to distribute loads evenly. A 100mm slab with SL72 mesh is adequate for a residential patio, but a pad supporting a plunge pool or spa will typically need a reinforced slab of at least 150mm, with engineering to confirm bar sizing and spacing.
If you’re comparing pool types, this spa pool vs precast plunge pool breakdown explains how weight and structural load differ between the two options, which directly affects your slab specification.
Pool and Spa Equipment Pads
Concrete equipment pads for pool pumps and filtration systems are commonly 100mm thick, though they should be reinforced to handle vibration over time. For larger installations, consult your pool builder about whether additional thickness or footings are needed. The team at Plunge Pools Brisbane, specialists in precast plunge pool installation and custom above ground and inground styles, factor slab requirements into every project from the start.
Costs, Sloped Sites, and Precast Pools
Concrete costs in Queensland typically range from A$65 to A$110 per square metre for a standard 100mm slab, with price increasing for thicker pours, added reinforcement, or difficult access. The plunge pool cost Brisbane page gives a clearer picture of how site preparation costs, including concreting, fold into the overall budget for a pool project.
For those building on uneven land, precast plunge pools on sloped sites outlines what’s involved in preparing a stable, level base, which is often the most labour-intensive part of the job. If you’re considering a precast option, the precast plunge pools guide walks through installation requirements including the base slab specifications you’ll need.
The Australian Building Codes Board also provides guidance on structural requirements that may apply to your project depending on your local council and land classification.
Things to Know
- A 100mm slab is the residential standard, but reactive soils often require a thicker or waffle-pod design.
- Always request a soil test before finalising your slab thickness with your engineer or builder.
- Pool surrounds need adequate drainage fall built into the slab, which can affect overall depth at the edges.
- Reinforcement type matters as much as thickness. Mesh versus reo bar affects crack control and long-term performance.
Conclusion
Most concrete slabs in Brisbane are 100mm to 150mm thick. The right thickness depends on load, soil, and design. Reinforcement and base preparation matter just as much as thickness. If you want concrete that lasts, it must be designed properly from the start and with sufficient load-bearing capacity.
At Brisbane Plunge Pools, we design and build concrete slabs that suit Brisbane soil conditions and meet Australian Standards. Whether it is a driveway, patio, or plunge pool base, we make sure it is done right the first time and help you construct reliable foundations.
Ready to Lock In Your Slab Specification?
Contact Plunge Pools Brisbane directly to discuss your site conditions, pool type, and what concrete slab thickness your project will require. Getting this confirmed early prevents delays and cost blowouts once work begins.
Frequently Asked Questions
What is the minimum concrete slab thickness for a residential driveway in Australia?
The minimum recommended thickness for a residential driveway is 100mm, though 125mm to 150mm is preferable for vehicle traffic.
Engineers and certifiers typically recommend the thicker option if heavier vehicles such as vans or utes will use the driveway regularly. Reinforcement with steel mesh is standard for driveways regardless of thickness.
Does a plunge pool need a special concrete slab?
Yes, plunge pools require a reinforced concrete base that is typically 150mm thick or more, depending on the pool’s weight and soil type.
Precast models in particular need a flat, level, and structurally sound slab to distribute weight evenly. Your pool installer should provide a slab specification before any concrete is poured.
How does reactive soil affect what thickness is a concrete slab?
Reactive soils require thicker slabs and more robust reinforcement because they move with moisture changes, putting stress on the structure.
A geotechnical report classifies your soil, and your engineer uses that classification to design an appropriate slab. In Queensland, Class H1 and H2 sites are common and may require a waffle-pod or stiffened raft slab design.
Can I pour a concrete slab myself in Australia?
Small decorative slabs may be a DIY project, but structural slabs for homes, garages, or pools require a licensed contractor and council approval in most states.
The healthdirect.gov.au website isn’t the relevant authority here, but your local council and state building authority are. In Queensland, check with the Queensland Building and Construction Commission for licensing requirements.
What happens if a concrete slab is too thin?
A slab that is too thin will crack under load, shift with soil
